sensor and switches

Short Introduction

What Are Sensors in HVAC?

Sensors in HVAC (heating, ventilation, and air conditioning) systems are essential devices that monitor and measure various parameters, including temperature, humidity, pressure, and airflow, to ensure efficient system performance. These sensors are vital for maintaining optimal indoor air quality, minimizing energy usage, and preventing potential equipment damage.

Types of Sensors Utilized in HVAC:

  • Temperature Sensors: Gauge the temperature of air, water, or refrigerant within the system.
  • Humidity Sensors: Assess the relative humidity (RH) in the air.
  • Pressure Sensors: Measure the pressure levels of air, water, or refrigerant in the system.
  • Airflow Sensors: Determine the velocity or volume of airflow throughout the system.
  • CO₂ Sensors: Detect the concentration of carbon dioxide in the air.
  • Occupancy Sensors: Identify the presence or absence of individuals in a given space.
content

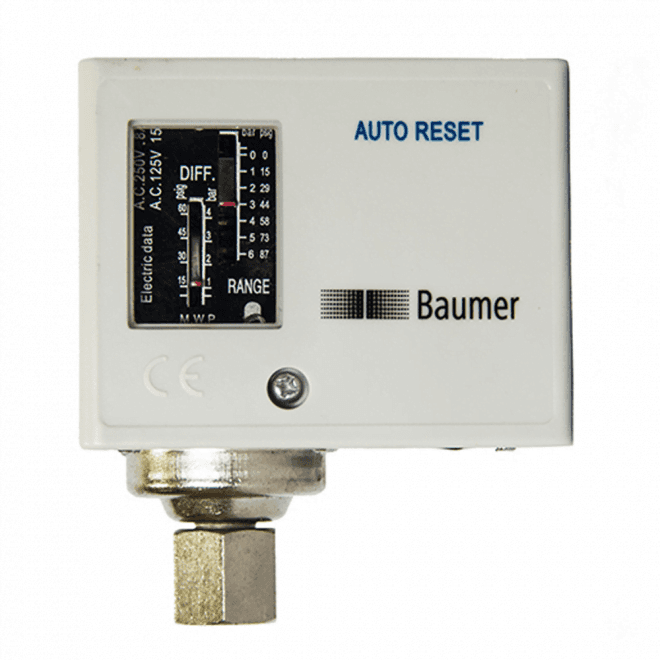

AIR PRESSURE SWITCH

An air pressure switch in a compressor is a mechanical device that tracks the air pressure inside the compressor tank. It automatically turns the compressor on or off based on predetermined pressure levels, effectively managing the compressor’s function by activating it when the pressure falls below a specific threshold and shutting it down when the pressure hits the maximum limit, thus preventing over-pressurization.

Learn More
content

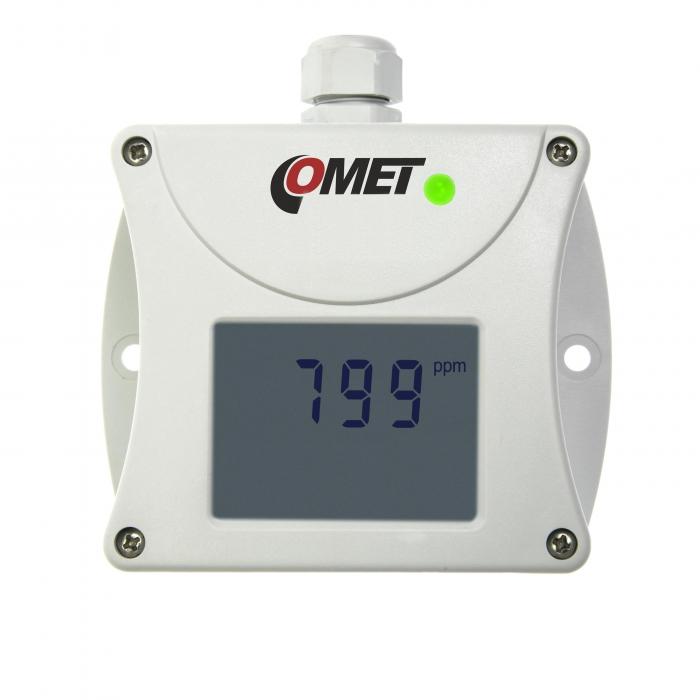

CARBON DIOXIDE (CO2) SENSORS

A CO2 sensor in HVAC systems is a device that gauges the concentration of carbon dioxide (CO2) in the air. Its primary purpose is to assess indoor air quality (IAQ) by indicating how effectively a space is ventilated and adjusting ventilation rates based on occupancy levels. This approach enhances energy efficiency by introducing fresh air only when necessary.

Learn More
content

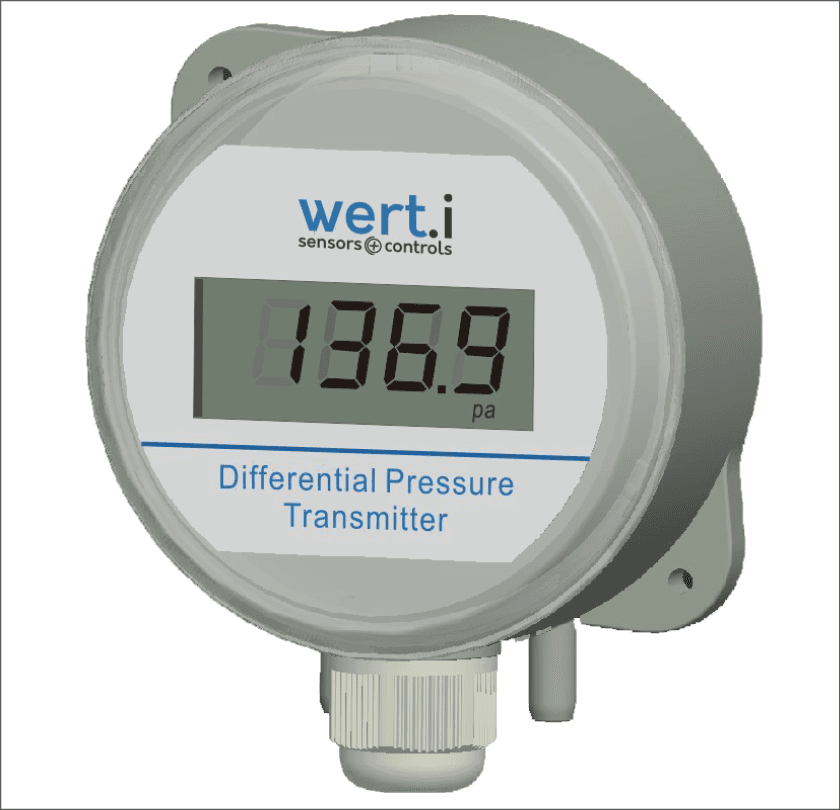

Differential Pressure Switch

in HVAC is a device that tracks the pressure difference between two locations within an air flow system. It is commonly utilized to detect when an air filter is becoming blocked by triggering an alarm or activating controls to resolve the issue. This ensures efficient airflow and system performance by monitoring pressure variations across components like filters and fans.

Learn More
content

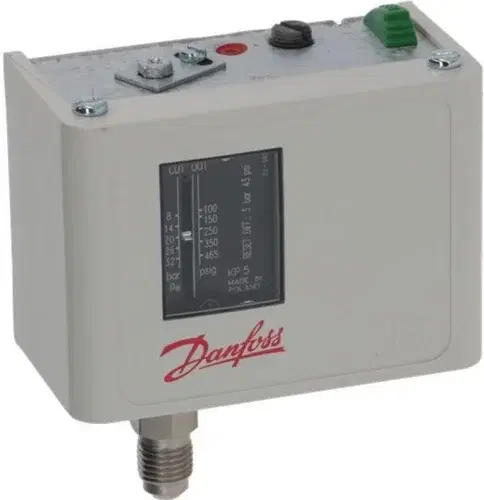

HIGH PRESSURE (HP) SWITCH

High-pressure switches serve as vital safety components within HVAC systems. True to their name, these switches are designed to monitor refrigerant pressure levels, typically installed on the liquid line. They continuously assess the refrigerant levels, and if the pressure goes above the acceptable operating range, they quickly detect this and send a signal to the control panel, prompting the HVAC system to stop.

Learn More
content

HUMIDITY SENSORS

A humidity sensor in an HVAC system is a device that measures the moisture content (humidity) in the air. This enables the HVAC system to adjust its operations to maintain a comfortable humidity level within a space, usually by controlling dehumidifiers or humidifiers as necessary. It effectively detects the amount of water vapor present in the air and relays this information to the HVAC system for regulating humidity levels.

Learn More
content

LOW PRESSURE (LP) SWITCH

Low-pressure switches serve as vital safety components within HVAC systems. True to their name, these switches are designed to monitor refrigerant pressure levels, typically installed on the suction line. They continuously assess the refrigerant levels, and if the pressure falls below the acceptable operating range, they quickly detect this drop and send a signal to the control panel, prompting the HVAC system to stop.

Learn More
content

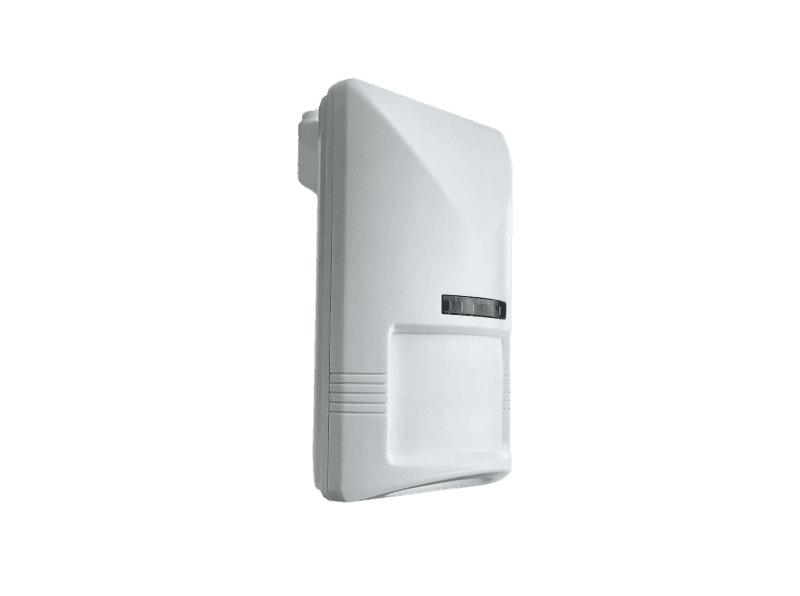

OCCUPANCY SENSORS

An occupancy sensor in an HVAC system is a device that identifies the presence of individuals in a room. This allows the HVAC system to modify heating or cooling based on whether the space is occupied. Essentially, it activates the system when people are present and deactivates it when they leave, leading to energy savings.

Learn More
content

PRESSURE SWITCHES

A pressure switch in HVAC (heating, ventilation, and air conditioning) systems is a device designed to monitor the pressure of various fluids, including refrigerant, air, or water. It activates a response when the pressure reaches a predetermined setpoint. These switches are essential for protecting equipment, preventing damage, and ensuring safe operation.

Learn More
content

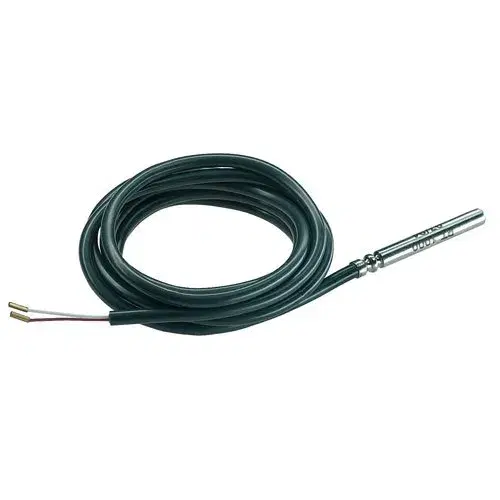

TEMPERATURE SENSORS

Temperature sensors play a crucial role in monitoring and regulating the climate based on the predetermined temperature within a space. Several types of commonly used temperature sensors in HVAC include the following:

Learn More
content

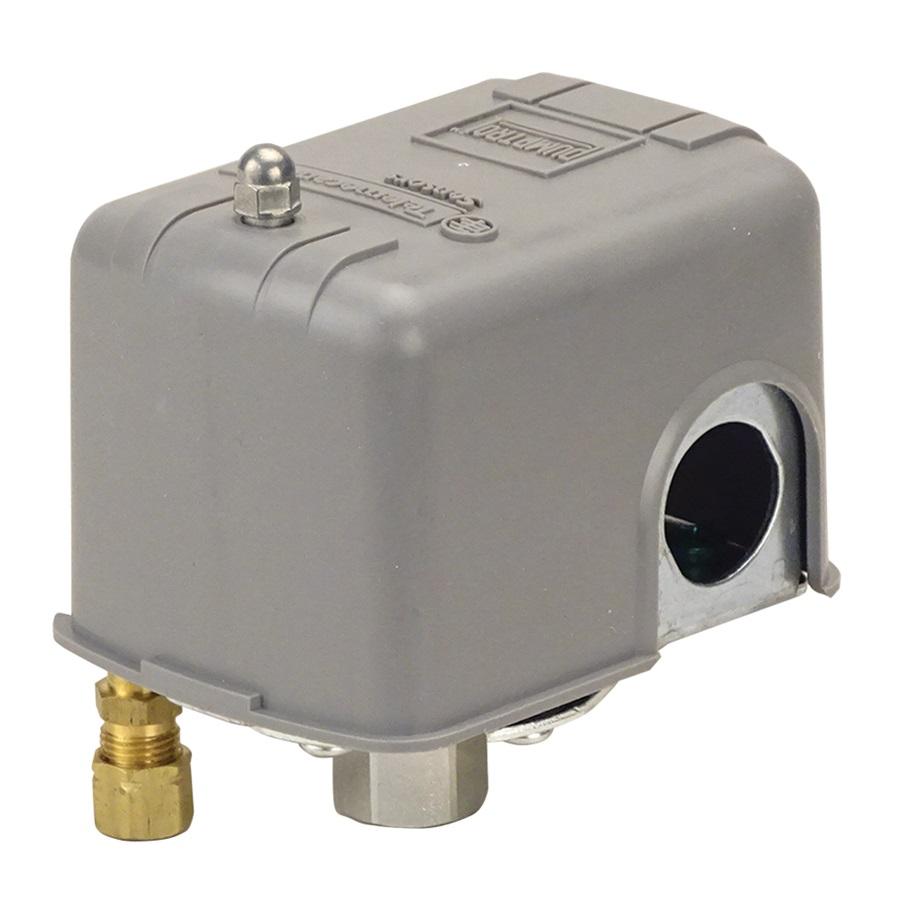

WATER PRESSURE SWITCH

A water pressure switch is a crucial device found in HVAC systems that monitors the water pressure, particularly within a hydronic heating loop. It sends a signal, such as shutting down the system, when the pressure falls below or exceeds a predetermined safe level, serving as a vital safety mechanism to protect the equipment from harm due to extreme fluctuations in water pressure.

Learn More
