CHARGING VALVE

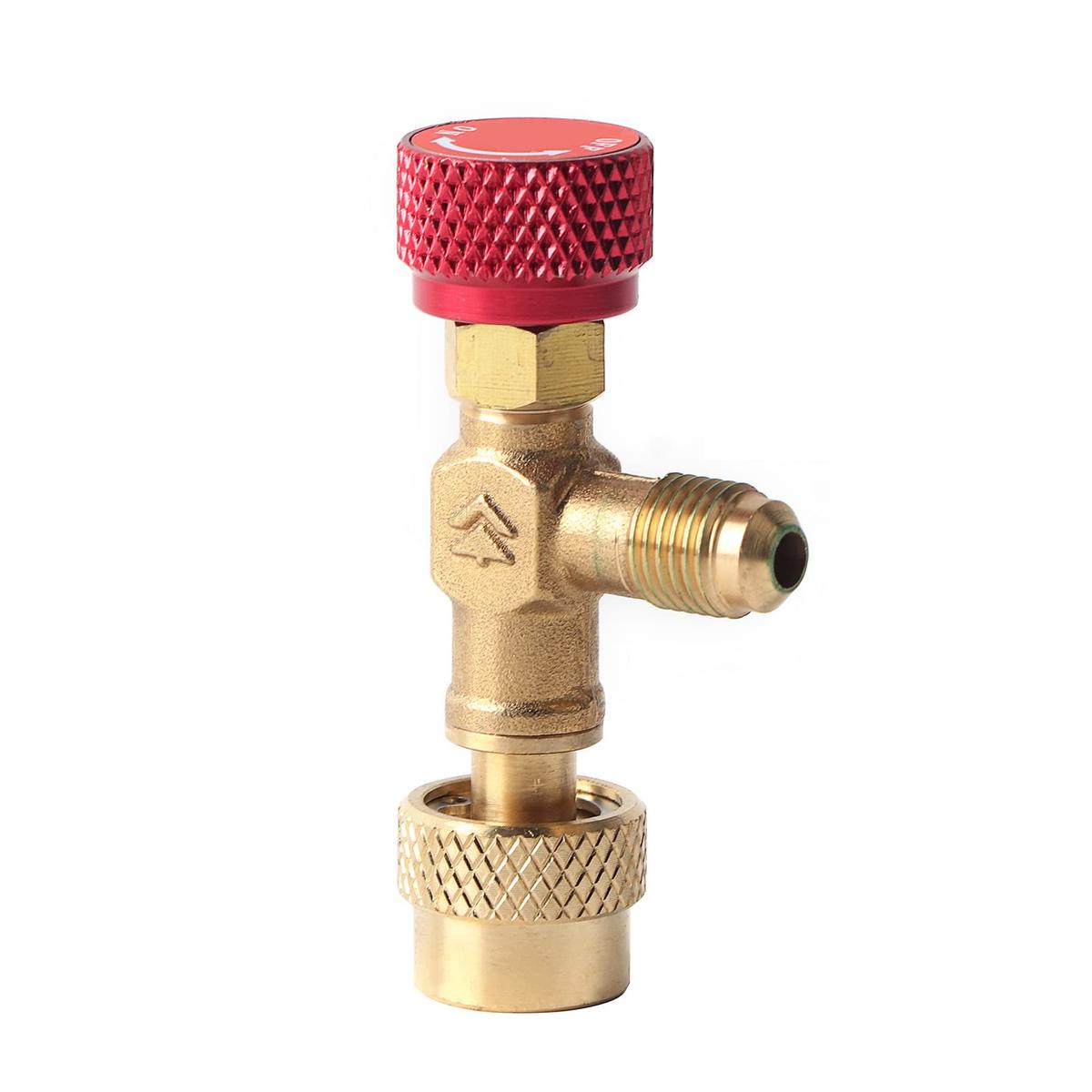

What is a Charging Valve in HVAC?

In HVAC systems, a charging valve, also known as a service valve, is a specialized valve used to facilitate the addition or removal of refrigerant or oil from the HVAC equipment.

Charging valves are essential for performing maintenance and repairs on HVAC systems, such as adding refrigerant when the system is low or removing refrigerant for repairs or replacement of components. These valves are typically found on the high-pressure and low-pressure sides of the refrigeration system, allowing technicians to access the refrigerant lines.

The most common purposes of charging valves are:

• To remove refrigerant gases from the system during repair.
• To charge refrigerant gases in the system when the pressure is low.
• To charge nitrogen or air pressure during system pressure testing.
• To eliminate excess oil or air particles during system vacuuming and commissioning.

There are different types of charging valves, including needle valves, pin valves, and Schrader valves.

As charging valves are breakdown-repair-related accessories used by technicians, they do not have any connection with essential HVAC mounting accessories. There are various local manufacturers for charging valves.
