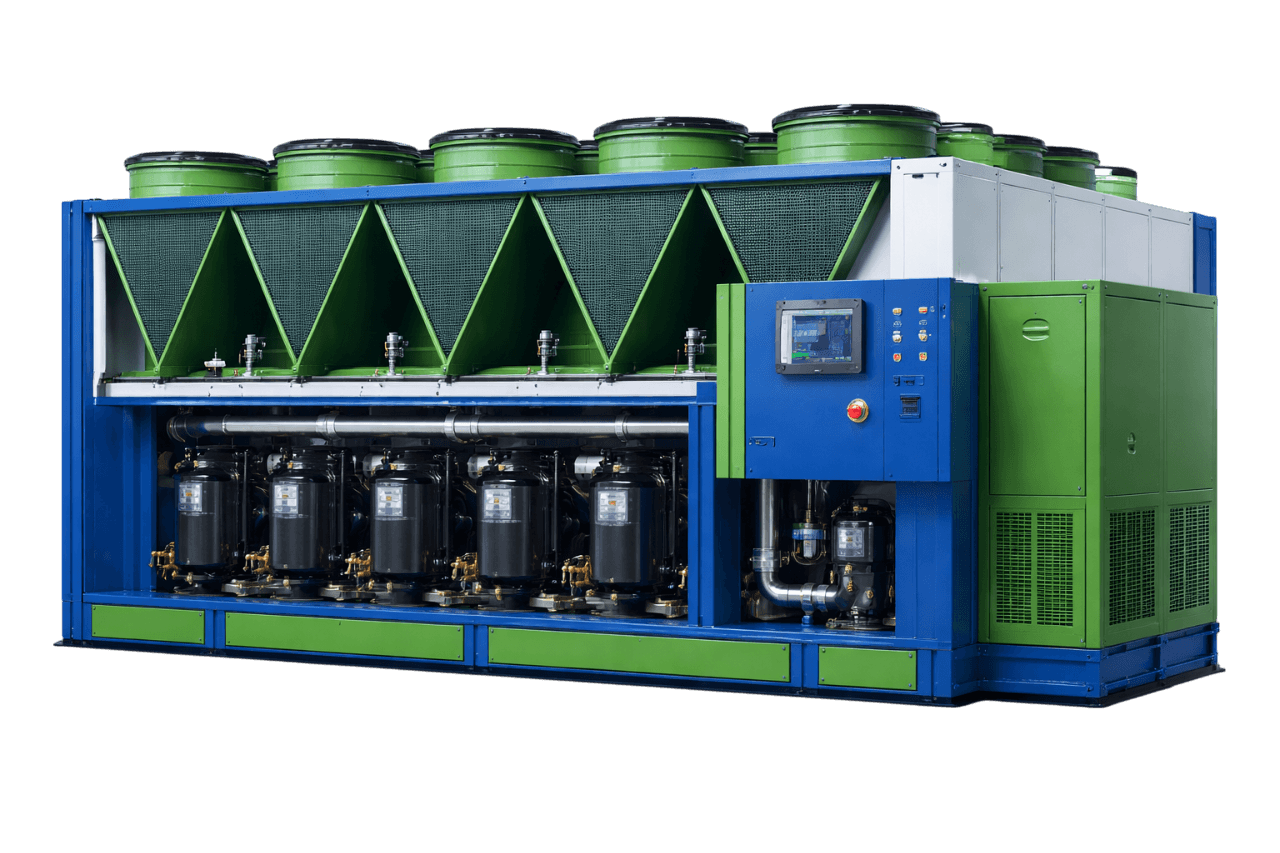

Air Cooled Scroll Chiller

An Air Cooled Scroll Chiller is a packaged refrigeration system that uses one or more scroll compressors to remove heat from water or process fluid.

The chilled water produced by the system can be circulated through:

A typical Air Cooled Scroll Compressor Chiller consists of:

Because condenser heat is rejected directly into the surrounding atmosphere, an air cooled system normally does not require a conventional cooling tower.

This makes an Air Cooled Water Chiller particularly useful where plant space, water availability, installation simplicity and maintenance requirements are important considerations.

The Air Cooled Scroll Chiller Working Principle is based on the vapour-compression refrigeration cycle.

The system continuously transfers heat from chilled water or process fluid to the outdoor air.

Warm return water enters the evaporator.

Refrigerant circulating through the evaporator absorbs heat from the water.

As heat is removed, the water temperature decreases and chilled water is supplied back to the HVAC system or industrial process.

Low-pressure refrigerant vapour enters the Air Cooled Scroll Chiller Compressor.

Inside the scroll compressor, two spiral-shaped scroll elements compress the refrigerant.

One scroll remains stationary while another moves in an orbiting motion.

As refrigerant moves toward the centre of the scroll mechanism, its volume decreases and pressure increases.

The high-pressure refrigerant enters the Air Cooled Scroll Chiller Condenser.

Condenser fans move ambient air across the condenser coil.

Heat from the refrigerant is transferred to the surrounding air.

After condensation, refrigerant passes through an expansion device.

The refrigerant pressure and temperature decrease before it returns to the evaporator.

The refrigeration cycle continues until the required chilled-water temperature is achieved.

A Scroll Compressor Chiller uses scroll compression instead of piston or screw compression.

The scroll compressor normally contains two spiral-shaped components:

The movement creates progressively smaller refrigerant pockets.

This compresses the refrigerant smoothly before it is discharged into the condenser.

Scroll compressor technology can offer practical advantages such as:

A chiller scroll compressor arrangement can use a single compressor or multiple compressors depending on cooling capacity.

Multiple-compressor configurations can stage compressor operation according to actual cooling demand.

For example, a chiller containing several scroll compressors does not necessarily need all compressors operating when the cooling load is low.

A Multiple Compressor Scroll Chiller combines several scroll compressors within one cooling system.

The controller can start or stop individual compressors according to chilled-water temperature and cooling demand.

This configuration can provide:

A Multiple Scroll Compressor Chiller can therefore provide a practical solution where cooling demand changes throughout the operating day.

A Tandem Scroll Chiller uses two scroll compressors connected within a coordinated refrigeration circuit.

A Tandem Scroll Compressor Chiller can stage compressor operation according to the cooling load.

When demand is lower, one compressor may operate.

When the cooling requirement increases, the second compressor can be activated.

This type of configuration can provide improved load matching compared with a single fixed-capacity compressor.

An Air Cooled Hermetic Scroll Chiller uses hermetically sealed scroll compressors.

The compressor motor and compression mechanism are housed inside a sealed casing.

Hermetic scroll technology is commonly selected for packaged cooling systems because of:

An Inverter Scroll Chiller uses variable-speed technology to adjust compressor operation according to cooling demand.

Rather than relying only on compressor ON/OFF staging, compatible variable-speed systems can modulate compressor capacity.

Potential advantages can include:

The actual benefit depends on chiller configuration, operating profile and control strategy.

A Microprocessor Controlled Scroll Chiller uses an electronic controller to monitor and coordinate system operation.

An Air Cooled Scroll Chiller with Microprocessor Controller can monitor parameters such as:

Depending on system capabilities, the controller may also support integration with centralized building or plant automation systems.

The correct chiller technology depends on the application, but Air Cooled Scroll Chillers offer several practical benefits.

Heat is rejected directly to outdoor air.

For suitable installations, this removes the requirement for:

A Packaged Air Cooled Scroll Chiller combines major refrigeration components into a compact assembly.

This can simplify equipment installation compared with cooling plants requiring separate condenser-water infrastructure.

Multiple scroll compressors can be staged according to cooling demand.

This makes scroll technology attractive for applications with changing loads.

Air cooled chillers can often be installed outdoors, on rooftops or in designated utility areas with appropriate airflow and service clearance.

Because condenser heat is rejected to air, the system normally requires significantly less condenser-side water infrastructure than a conventional water-cooled plant.

Scroll chillers can serve manufacturing, commercial HVAC and process-cooling applications depending on required capacity and temperature.

An Industrial Air Cooled Scroll Chiller provides chilled water for industrial equipment and manufacturing processes.

Industrial cooling requirements differ from standard comfort air conditioning because process loads may operate continuously and require tighter temperature control.

An industrial scroll chiller can support:

The chiller should be selected according to actual process conditions rather than nominal tonnage alone.

An Air Cooled Scroll Chiller for Process Cooling can provide controlled chilled water to industrial equipment requiring continuous heat removal.

Important process conditions include:

Compress India can evaluate these conditions while planning an Industrial Process Cooling Chiller system.

An Air Cooled Scroll Chiller for Manufacturing Plant applications can support centralized or equipment-specific cooling.

Manufacturing processes may generate heat from:

A properly selected Industrial Process Chiller removes this heat and maintains the required process temperature.

An Air Cooled Scroll Chiller for Factory Cooling can support both industrial process cooling and chilled-water HVAC applications.

Depending on system design, chilled water can serve:

One facility may therefore use chilled water for multiple cooling requirements.

An Air Cooled Scroll Chiller for Pharmaceutical Industry applications may support chilled-water requirements for:

System selection should consider cooling continuity, operating temperatures, redundancy and maintenance requirements.

Chemical manufacturing facilities can require controlled cooling for production processes.

An Air Cooled Scroll Chiller for Chemical Industry applications may supply chilled water to:

Fluid compatibility and required process temperature should be evaluated during system design.

Plastic manufacturing creates substantial process heat.

An Air Cooled Scroll Chiller for Plastic Industry applications can provide chilled water for:

An Air Cooled Scroll Chiller for Injection Moulding removes heat from moulds and manufacturing equipment.

Correct cooling can help maintain controlled process conditions and support continuous machine operation.

An Air Cooled Scroll Chiller for Food Processing can provide controlled chilled water for suitable processing equipment and factory utilities.

Typical applications may include:

An Air Cooled Scroll Chiller for Beverage Industry can provide chilled water for suitable production and process equipment.

An Air Cooled Scroll Chiller for Dairy Industry can support process equipment and chilled-water utility requirements according to actual plant conditions.

Manufacturing equipment used for packaging and printing can generate significant heat during continuous production.

An Air Cooled Scroll Chiller for Packaging Industry or Air Cooled Scroll Chiller for Printing Industry can provide controlled cooling for:

An Air Cooled Scroll Chiller for Machine Cooling can provide an independent chilled-water circuit for equipment that requires stable operating temperatures.

This can be useful where normal factory ventilation or comfort cooling cannot adequately remove process heat.

An HVAC Air Cooled Scroll Chiller supplies chilled water to building air-conditioning systems.

Chilled water can be circulated through:

A Commercial Air Cooled Scroll Chiller can therefore provide centralized cooling for commercial facilities where chilled-water HVAC is preferred.

An Air Cooled Scroll Chiller for Commercial Building applications can support centralized air conditioning without requiring a conventional cooling tower.

Potential applications include:

Hotels can use chilled-water systems for guest rooms, common areas, restaurants, banquet areas and other conditioned spaces.

Hospitals and healthcare buildings can use scroll chillers as part of suitable centralized chilled-water HVAC configurations.

System sizing and redundancy should be selected according to project-specific cooling requirements.

An Air Cooled Scroll Chiller for Offices can provide chilled water to AHUs and FCUs serving office spaces and commercial facilities.

Correct Air Cooled Scroll Chiller Capacity depends on calculated cooling load and operating conditions.

Capacity selection should consider:

A 5 TR Air Cooled Scroll Chiller can suit small process cooling, machinery and localized chilled-water applications.

A 10 TR Air Cooled Scroll Chiller is suitable for many small industrial processes, equipment cooling requirements and commercial cooling applications.

A 12 TR Air Cooled Scroll Chiller can be evaluated when the calculated cooling load lies between standard smaller and medium-sized packaged systems.

A 15 TR Air Cooled Scroll Chiller can support small-to-medium manufacturing and commercial cooling requirements.

A 20 TR Air Cooled Scroll Chiller can serve process equipment, manufacturing facilities and centralized chilled-water applications.

A 25 TR Air Cooled Scroll Chiller can be configured for medium industrial and commercial cooling loads depending on operating conditions.

A 30 TR Air Cooled Scroll Chiller can support medium industrial process loads and chilled-water HVAC requirements.

A 40 TR Air Cooled Scroll Chiller can be evaluated for larger process or commercial applications requiring multi-compressor capacity.

A 50 TR Air Cooled Scroll Chiller can provide substantial cooling for manufacturing facilities and commercial chilled-water systems.

A 60 TR Air Cooled Scroll Chiller may use multiple compressors and refrigeration circuits to achieve the required capacity.

An 80 TR Air Cooled Scroll Chiller can be considered where modular scroll technology remains appropriate for the project's operating profile.

A 100 TR Air Cooled Scroll Chiller can combine multiple scroll compressors to provide higher cooling capacity with staged operation.

A 120 TR Air Cooled Scroll Chiller may be considered for larger industrial or commercial installations depending on manufacturer configuration and design conditions.

For higher capacities, scroll technology should also be compared with screw or centrifugal chiller solutions during engineering evaluation.

Correct Air Cooled Scroll Chiller Sizing is essential for efficient and reliable operation.

An oversized chiller may operate inefficiently at low loads, while an undersized chiller may be unable to maintain the required temperature during peak demand.

Sizing should consider:

An Air Cooled Scroll Chiller Capacity Calculation should be based on the actual thermal load.

For water-based applications, required cooling capacity is influenced by:

Industrial projects should use proper engineering calculations instead of selecting a chiller solely from machine rating or facility area.

Important Air Cooled Scroll Chiller Specifications can include:

Air Cooled Scroll Chiller Cooling Capacity can be stated in TR or kW.

Actual available capacity varies with operating conditions.

A scroll chiller may contain one, two or multiple scroll compressors depending on the system size.

Supply and return temperatures should match process or HVAC requirements.

Correct water flow is required for effective heat transfer and stable chiller operation.

Air Cooled Scroll Chiller Refrigerant depends on equipment generation, system design and compressor compatibility.

The Air Cooled Scroll Chiller Condenser rejects refrigerant heat to outdoor air through coils and condenser fans.

The Air Cooled Scroll Chiller Evaporator transfers heat from chilled water or process fluid into the refrigeration circuit.

The Air Cooled Scroll Chiller Controller manages compressor operation, temperature setpoints, condenser fans, safety conditions and alarms.

Specifications should include:

Air Cooled Scroll Chiller Dimensions vary according to capacity, number of compressors, condenser size and equipment configuration.

Installation planning should account for both equipment dimensions and required service and airflow clearance.

An existing R407C Air Cooled Scroll Chiller may be found in industrial and commercial installations.

When servicing an existing system, the compressor, refrigerant circuit, oil compatibility, controls and equipment specifications should be checked before undertaking major repairs or refrigerant-related work.

An R410A Air Cooled Scroll Chiller uses components designed specifically for the corresponding refrigerant operating pressures and system characteristics.

Service procedures and replacement components should match the original equipment requirements.

Existing facilities may still have older R22 Air Cooled Scroll Chiller equipment.

Before major repair, refrigerant work or modernization, the complete equipment condition should be assessed, including:

Depending on the condition of an older system, Compress India can evaluate repair, retrofit or replacement options.

A Low Temperature Scroll Chiller may be required when process fluid temperatures are below those used for conventional comfort air conditioning.

Low-temperature applications require careful evaluation of:

An Air Cooled Glycol Scroll Chiller circulates a water-glycol mixture rather than only water.

Glycol can be used where the process requires lower fluid temperatures or additional freeze protection.

An Industrial Glycol Chiller should be sized using the actual glycol concentration because fluid properties influence heat transfer and pumping requirements.

A Process Water Scroll Chiller provides temperature-controlled water for machinery or production equipment.

The correct system depends on:

Air Cooled Scroll Chiller Efficiency depends on the chiller design and overall plant conditions.

Performance can be affected by:

Air Cooled Scroll Chiller COP expresses the relationship between useful cooling output and energy input.

Actual COP changes according to operating load, outdoor temperature, chilled-water conditions and equipment performance.

Air Cooled Scroll Chiller Power Consumption depends on:

Plant operating cost should therefore be evaluated using expected operating conditions rather than nominal chiller tonnage alone.

A High Efficiency Air Cooled Scroll Chiller should combine appropriately selected equipment with efficient overall system operation.

Energy performance can be supported by:

An Energy Efficient Air Cooled Scroll Chiller should therefore be treated as part of a complete chilled-water system rather than as an isolated machine.

An Air Cooled Scroll Chiller vs Screw Chiller comparison is important when selecting equipment for medium or large cooling loads.

A Scroll Compressor vs Screw Compressor Chiller decision should consider:

Neither compressor technology should be selected solely by nominal cooling capacity.

A Scroll Chiller vs Reciprocating Chiller comparison involves two positive-displacement compressor technologies.

The correct choice depends on cooling load, equipment configuration and maintenance strategy.

The primary difference between an Air Cooled Chiller vs Water Cooled Chiller is the method used to reject condenser heat.

Project selection should consider capacity, operating hours, water availability, site conditions and lifecycle requirements.

Air Cooled Scroll Chiller Price in India depends on much more than TR capacity.

Two chillers with the same nominal capacity can have different costs because of differences in compressors, circuits, controls, design conditions and accessories.

Important factors affecting Air Cooled Scroll Chiller Price include:

A 10 TR Air Cooled Scroll Chiller Price depends on compressor configuration, refrigerant, controls, equipment design and installation scope.

A 20 TR Air Cooled Scroll Chiller Price can vary depending on compressor quantity, heat exchangers, electrical configuration and included accessories.

The 30 TR Air Cooled Scroll Chiller Price should be evaluated against the complete project requirement rather than tonnage alone.

A 50 TR Air Cooled Scroll Chiller Price can change substantially depending on multi-compressor configuration, refrigeration circuits, controls and system scope.

A 100 TR Air Cooled Scroll Chiller Price depends on how multiple compressors, condenser sections, refrigeration circuits and controls are configured.

The total Air Cooled Scroll Chiller Cost may include:

For an accurate Air Cooled Scroll Chiller Quotation, provide:

Correct Air Cooled Scroll Chiller Installation is essential for reliable equipment operation.

Compress India can support complete project execution.

The chiller should be positioned with adequate:

The hydronic system should include appropriate:

Pumps should provide the required water flow and system pressure.

Installation can include:

The completed system should be tested before full operation.

Commissioning can involve verification of:

Regular Air Cooled Scroll Chiller Maintenance helps support reliability and efficient performance.

Typical preventive maintenance can include:

Compress India can support troubleshooting and repair of scroll chiller systems.

Service requirements may include:

A structured AMC can help identify equipment problems before they lead to major cooling interruptions.

Depending on the agreed scope, chiller AMC support can include:

An Air Cooled Scroll Chilling Plant consists of more than the chiller itself.

The complete plant can include:

Compress India can support the complete Air Cooled Water Chilling Plant from system planning and equipment coordination through installation and commissioning.

Projects may reference a Carrier Air Cooled Scroll Chiller or Carrier Scroll Chiller when specifying or replacing existing cooling equipment.

For such projects, equipment selection should consider:

Compress India can evaluate the wider chilled-water system and project execution requirements around the selected equipment.

A project specification may call for a Daikin Air Cooled Scroll Chiller or Daikin Scroll Chiller.

The complete project should be evaluated according to actual design conditions rather than model tonnage alone.

Important parameters include cooling capacity, design ambient temperature, compressor configuration, controls and chilled-water requirements.

Existing systems or project specifications may reference Trane Air Cooled Scroll Chiller or Trane Scroll Chillers.

For an existing installation, the exact model, cooling duty, refrigerant, compressor configuration and system condition should be reviewed before determining repair, retrofit or replacement requirements.

Scroll chillers and a Trane centrifugal chiller represent different compressor technologies and capacity applications, so equipment should be compared according to the actual plant requirement rather than brand name alone.

Existing HVAC installations may include a YLAA Chiller or other packaged air-cooled chiller configurations.

When replacing, repairing or upgrading an existing chiller, Compress India can evaluate:

Older Scroll Chillers do not always require immediate complete plant replacement.

Depending on equipment condition, possible solutions can include:

A technical condition assessment should determine whether repair, retrofit or full replacement is the more practical approach.

Compress India supports projects requiring an Air Cooled Scroll Chiller Supplier in India with equipment coordination and complete HVAC engineering support.

Our scope can include:

This complete-system approach helps ensure that the supplied chiller is properly integrated into the overall cooling plant.

Companies searching for an Air Cooled Scroll Chiller Manufacturer in India, Scroll Chiller Manufacturer in India, Industrial Air Cooled Scroll Chiller Manufacturer in India or Air Cooled Chiller Manufacturer in India should compare equipment based on actual engineering requirements.

Important evaluation parameters include:

Compress India focuses on chiller selection, supply coordination, project engineering, installation, commissioning, repair and lifecycle services rather than manufacturing the chiller equipment itself.

For facilities searching for an Air Cooled Scroll Chiller Supplier in Mumbai, Compress India can support industrial and commercial chilled-water requirements with equipment selection and complete project execution.

Projects can include:

Compress India can evaluate air cooled scroll chiller projects for industrial and commercial facilities across multiple locations.

Search requirements may include:

For these requirements, Compress India can support system evaluation, equipment supply coordination, installation and lifecycle service.

Industrial projects may also require equipment or engineering support in locations such as:

Regardless of location, the chiller should be selected according to actual ambient conditions, cooling load, power supply, process temperature and installation requirements rather than location keyword alone.

Compress India approaches every chiller project as a complete HVAC and chilled-water engineering system.

We evaluate actual cooling requirements before recommending equipment capacity and configuration.

We can support selection and supply coordination for suitable branded chiller systems based on project requirements.

Our capabilities can cover:

The installed plant can be tested and commissioned to verify operating conditions and system functionality.

Compress India supports diagnosis, mechanical work, electrical rectification, refrigerant-system servicing and associated chiller repairs.

Older chilled-water systems can be evaluated for controls, electrical, pump, piping and equipment upgrades.

Lifecycle support can continue after commissioning through scheduled maintenance and AMC services.

When evaluating How to Select Air Cooled Scroll Chiller equipment, begin with the actual cooling requirement.

Consider:

Correct equipment selection requires balancing these parameters rather than choosing a chiller only by tonnage.

For manufacturing, industrial process cooling, machine cooling, commercial HVAC or existing chiller replacement, Compress India provides engineering-focused Air Cooled Scroll Chiller solutions based on actual project requirements.

Our team can support requirements for:

Contact Compress India with your required cooling capacity, process application, chilled-water temperatures, project location and operating conditions to discuss the right Air Cooled Scroll Chiller solution for your facility.
