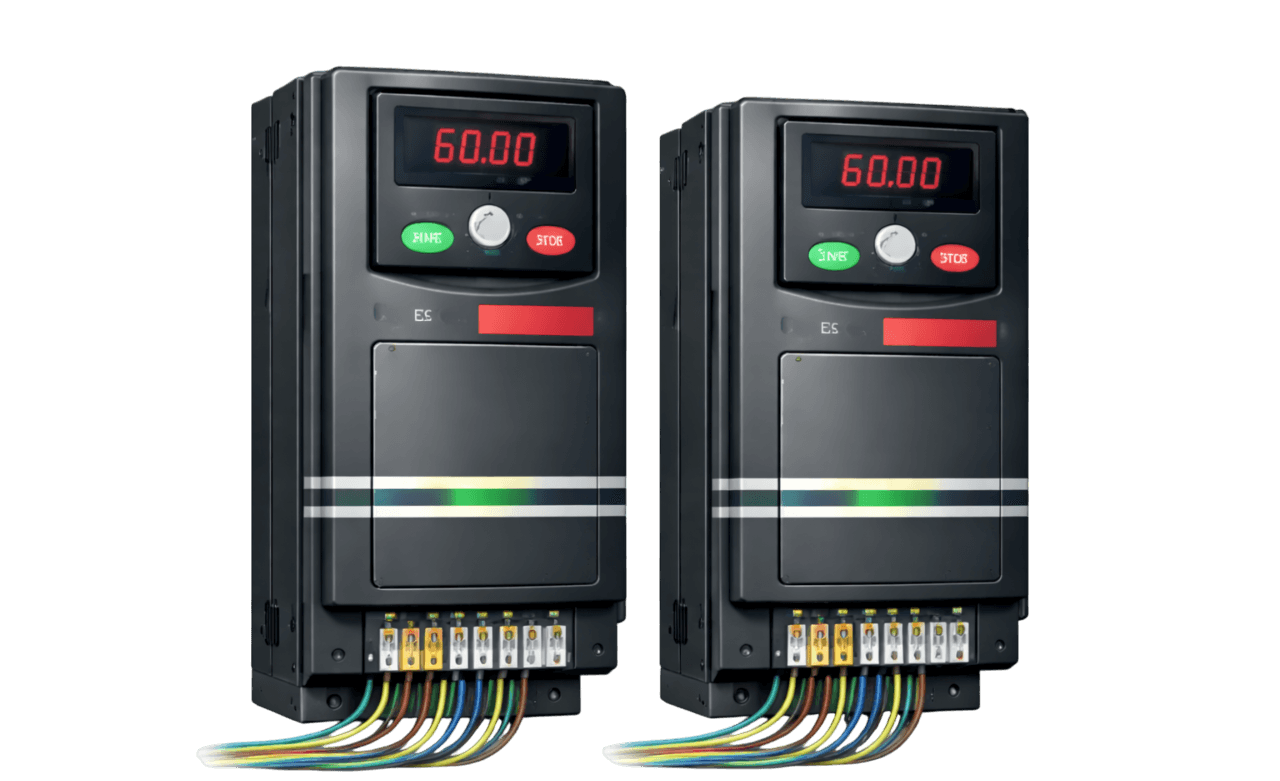

Variable Frequency Drives (VFDs)

Variable Frequency Drives (VFDs) are electronic motor controllers used to regulate motor speed by varying the input frequency and voltage supplied to the motor. In HVAC systems, VFDs are essential for improving energy efficiency, optimizing flow control, and extending equipment life. They are commonly applied in chilled water pumps, condenser water pumps, AHU supply and return fans, cooling tower fans, ventilation systems, exhaust systems, and process pumps.

VFDs enable demand-based flow control, pressure stabilization, soft motor starting, reduced inrush current, lower mechanical stress, energy savings (up to 30–50% in variable load systems), and PID-based dynamic control. Without VFD control, motors operate at constant speed, resulting in high energy consumption, mechanical stress, flow instability, excessive wear, and poor system control.

We provide Low Voltage VFDs (415V motor drives, compact drive units, wall-mounted VFDs), Medium Voltage VFDs (chiller plant large pump drives, industrial ventilation drives, high HP motor control), Standalone VFD Units (local pump drives, local fan control drives), Panel-Integrated VFD Systems (integrated MCC-VFD panels, centralized motor control panels), and Smart/Networked VFDs (BACnet-enabled drives, Modbus-compatible drives, remote monitoring drives).

We perform motor load analysis, HP/kW rating selection, input/output current calculation, harmonic impact assessment, IP rating selection, cooling requirement evaluation, and control method selection (V/f or Vector control). Proper sizing ensures reliability and longevity.

We execute VFD mounting, power cable termination, control wiring, earthing verification, panel integration, harmonic filter installation, reactor integration, and communication setup. Proper installation prevents electrical noise and interference.

We configure motor parameters, acceleration/deceleration time, PID control settings, minimum/maximum frequency, alarm limits, protection settings, and communication address configuration. Correct programming ensures stable and optimized operation.

We provide line reactors, harmonic filters, active harmonic filters, isolation transformers, and THD analysis. VFDs generate harmonics that can impact system performance. Mitigation ensures compliance with electrical standards.

We conduct insulation resistance testing, no-load testing, load trial, frequency response testing, alarm testing, and communication testing. Commissioning ensures safe startup and performance validation.

We handle overcurrent trips, overvoltage faults, overheating, communication failure, motor mismatch issues, and parameter corruption. Quick troubleshooting minimizes downtime.

Our AMC services include periodic inspection, fan and cooling system cleaning, terminal tightening, parameter backup, harmonic review, and firmware updates. Customized Annual Maintenance Contracts are structured for HVAC motor drive systems.
